The rack-mounted automatic fire extinguishing device is an automatic fire suppression system specifically developed for various types of server cabinets. It enables automatic fire detection and automatic fire extinguishing.
The device supports four activation methods: fire detection tube, heat-sensitive glass bulb, gas-generating type, and electric activation. In the event of a fire in any area of the cabinet, the extinguishing agent is discharged directly at the source of the fire. This solution eliminates the need for personnel evacuation, features low agent consumption and minimal environmental pollution, and delivers rapid point-to-point fire suppression, extinguishing fires at their incipient stage.
|
No. |
Item |
Parameter / Performance |
|
1 |
Product Name |
Rack-Mounted Automatic Fire Extinguishing Device |
|
2 |
Product Model |
RFT01~04 |
|
3 |
Activation Method |
Heat-Sensitive Glass Bulb / Fire Detection Tube / Electric Activation / Gas-Generating Type |
|
4 |
Filling Pressure |
1.6MPa（25℃） |
|
5 |
Response Time |
≤3s |
|
6 |
Extinguishing Agent |
FK-5-1-12 (Perfluorohexanone) |
|
7 |
Fire Class |
Class A, Class B, Class C, Class E |
|
8 |
Filling Dosage |
1~5kg |
|
9 |
Extinguishing Time |
≤10s |
|
10 |
Operating Temperature Range |
-20℃～65℃ |
|
11 |
Operating Humidity Range |
≤95% |
|
12 |
Operating Environment |
Coastal, Inland, Plateau, Desert |
|
13 |
Design Service Life |
8 Years |
|
14 |
Overall Dimensions |
L*B*H=556*522*89mm |
|
Customized models available for 1U, 2U, 3U and other dimensions, dosages, and activation temperatures |
||
The rack-mounted automatic fire extinguishing device is an automatic fire suppression system specifically developed for various types of server cabinets. It enables automatic fire detection and automatic fire extinguishing.
The device supports four activation methods: fire detection tube, heat-sensitive glass bulb, gas-generating type, and electric activation. In the event of a fire in any area of the cabinet, the extinguishing agent is discharged directly at the source of the fire. This solution eliminates the need for personnel evacuation, features low agent consumption and minimal environmental pollution, and delivers rapid point-to-point fire suppression, extinguishing fires at their incipient stage.
|
No. |
Item |
Parameter / Performance |
|
1 |
Product Name |
Rack-Mounted Automatic Fire Extinguishing Device |
|
2 |
Product Model |
RFT01~04 |
|
3 |
Activation Method |
Heat-Sensitive Glass Bulb / Fire Detection Tube / Electric Activation / Gas-Generating Type |
|
4 |
Filling Pressure |
1.6MPa（25℃） |
|
5 |
Response Time |
≤3s |
|
6 |
Extinguishing Agent |
FK-5-1-12 (Perfluorohexanone) |
|
7 |
Fire Class |
Class A, Class B, Class C, Class E |
|
8 |
Filling Dosage |
1~5kg |
|
9 |
Extinguishing Time |
≤10s |
|
10 |
Operating Temperature Range |
-20℃～65℃ |
|
11 |
Operating Humidity Range |
≤95% |
|
12 |
Operating Environment |
Coastal, Inland, Plateau, Desert |
|
13 |
Design Service Life |
8 Years |
|
14 |
Overall Dimensions |
L*B*H=556*522*89mm |
|
Customized models available for 1U, 2U, 3U and other dimensions, dosages, and activation temperatures |
||

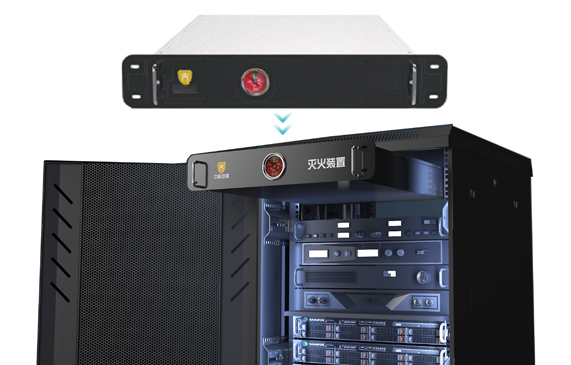

Standard 1U/2U dimensions, installed inside cabinets for space saving. Highly integrated and modular design for simple installation, commissioning and maintenance.
Temperature/smoke detection enables automatic agent discharge. Specially designed for data center cabinets and battery cabinets, with residue-free extinguishing, electrical insulation and chemical stability to protect precision equipment.
