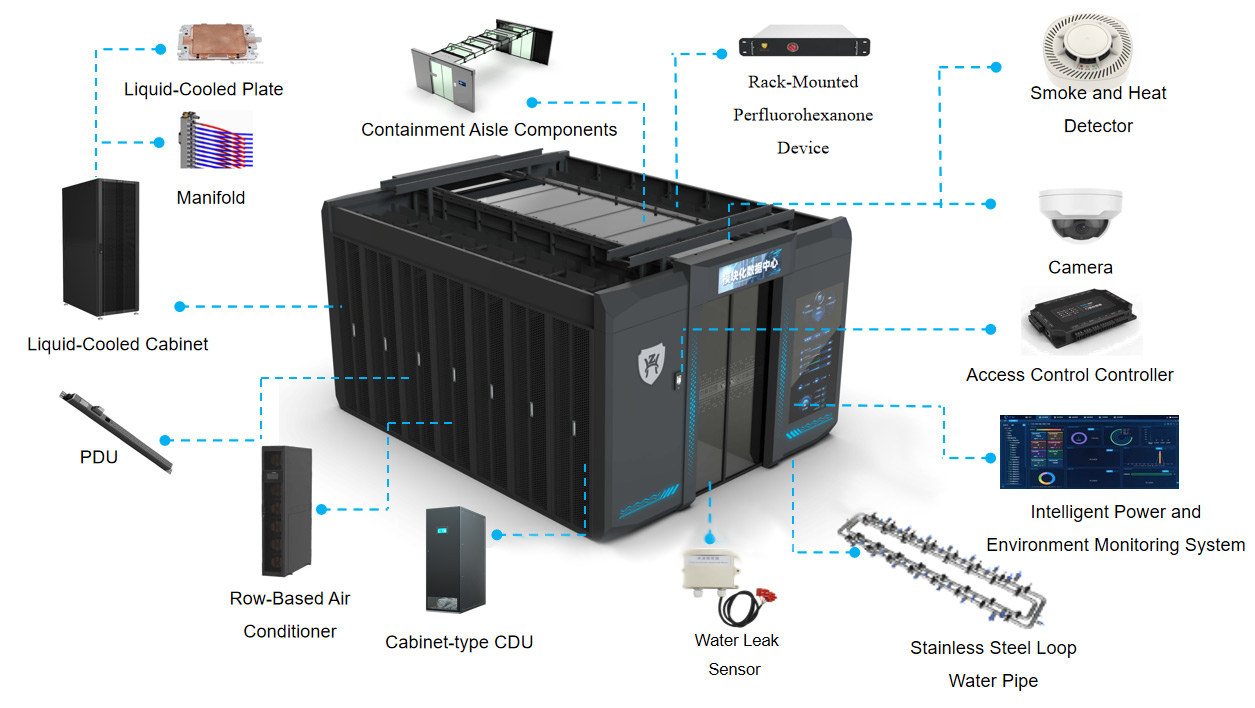

Data center micro-module, often referred to as "micro-module" or "MDC", is a standardized and prefabricated data center deployment solution. It integrates all infrastructure components required for a complete data center (including cabinets, cooling, power supply and distribution, fire protection, dynamic environment monitoring, cabling, etc.) into a closed, independent physical module. It can be regarded as a "standardized container" for data centers.Each micro-module is a self-contained independent unit with full functions. Multiple modules can be rapidly combined, replicated and expanded like building blocks to form an entire data center.
Technical Specifications
|
No. |
Item |
Parameter / Performance |
|
1 |
Product Name |
Micro-Module |
|
2 |
Product Model |
MDC-300 |
|
3 |
Rated IT Load |
400kW |
|
4 |
Rated Operating Voltage |
AC 50Hz/60Hz, 3-phase 400V, 1-phase 230V |
|
5 |
Input Switch Breaking Capacity |
≥25kA |
|
6 |
Output Switch Breaking Capacity |
≥6kA |
|
7 |
Electrical Surge Protection |
Imax＝40kA，8/20µS |
|
8 |
Communication Mode |
RS485 / Ethernet |
|
9 |
Ingress Protection Rating |
IP20 |
|
10 |
IT Load Per Cabinet |
32kW |
|
11 |
Design Life |
10 Years |
|
12 |
Cabinet Dimensions |
W(600±2)mm * H(2200±3)mm * D(1200±3)mm |
|
13 |
Ambient Temperature |
-5℃～＋40℃ |
|
14 |
Relative Humidity |
≤50% at max. temperature +40℃. Higher relative humidity allowed at lower temperatures, e.g. up to 90% at +20℃. |
|
15 |
Altitude |
≤2000m |
|
16 |
Others |
Non-dusty environment, free from strong vibration and shock |
